Folding Service Doors

Folding Service Doors

1 photo


Portfolio Description

Usage Areas:

Hotels, medicine storage rooms, Medical equipment and waste rooms, Air  conditioning  rooms, Food  facilities such as meat, cheese, milk, Production  facilities, Warehouses, Warehouses, Factories, Dyehouses, Women’s health and  beauty  centers, Garbage  processing  plants,  Morgues, Phrygian  vehicles, Gsm  booths,  Pickles, Telecommunication  base  station  centers, Areas  requiring  hygiene, Restaurants, Food  production   facilities, Pastryhouses, Hot  rooms, Integrated  production  facilities, Pc  server  rooms, Vegetable  and  fruit processing plants,  Tomato   paste   production  facilities, Hospitals, Operating  theaters, Fish  production  and  Processing plants, Clearance stations, Chemical laboratories.

Doors Special Solutions:

  • Doors are easy and fast to mounted , and easy to maintain
  • The area to be used is produced according to your needs
  • Includes special accessories developed according to every need
  • It has a system to be installed according to each wall type
  • It has the feature of keeping the thermal insulation at maximum level
  • we use Package with strength packaging system
  • Service doors are produced embedded inside the moldings
  • Suitable for factory areas

Environment and User Friendly:

  • Clean design
  • Does not contain bacteria
  • Corrosion resistant
  • High-pressure accessories
  • Manufacturing with environmentally friendly products
  • Maximum energy saving
  • Durable materials
  • High vapor proof sealing system
  • Quiet and smooth operation

Technical Details

  • In general, Service door models are not standard in the world.
  • Minimum: 200 cm Width * 100 cm High * 40 mm thickness (wing / blade size)
  • Maximum: 800 cm Width * 650 cm High * 40 mm thickness (wing / blade size)



*Maximum door dimensions can be made by considering the international transport standards
**Measures can be made in the desired size in the areas to be applied on-site.
***Maximum dimensions can be increased for Opentop containers and truck

Room temperature range door to use: NEGATIVE – 50°C / POSITIVE 80°C

Door type: Folding Service door

Door Blade ( wing )Thickness: 40 mm

Door Blade ( wing ) sheet feature: Door sheet  are coatings with scratch protection surface with pvc films 100-200 µ micron / 0,50 mm x 0,70 mm (minimum) hot dipped  galvanized  coil  coating painted  steel  10142

Door Blade (wing) sheet quality: dx51d + z – EN 10327 – Standards

Door Blade (wing) insulation features: Polyol + Izocsiyanate = Polyurethane

Insulation density: 40 – 45 kg / m3   – EN 1602 Standards

Thermal Conductivity Coefficient: λ = 0,022 W/mK   – EN 13162

Fire Classification: PUR – B-s1, d0 EN 13501-1   /   PIR  B-s1, d0 EN 13501-1 (optionally)

Door Blade (wing) color suggested: Standard models Ral 9002 – Different colors optional PVDF (Polyvinylidene Floride) Painted Galvanized sheet

Door Insulation Gaskets: Double Density Component with Epdm and Pvc Combination. Suitable for use in the thermal temperature range between 65°C and + 150°C. As used in food and living  areas, it is in compliance   with  21.CFR 177.2600  specifications   and   quality  standards. Can  be produced without   Step ( threshold ) or wıth Step ( threshold ) type.

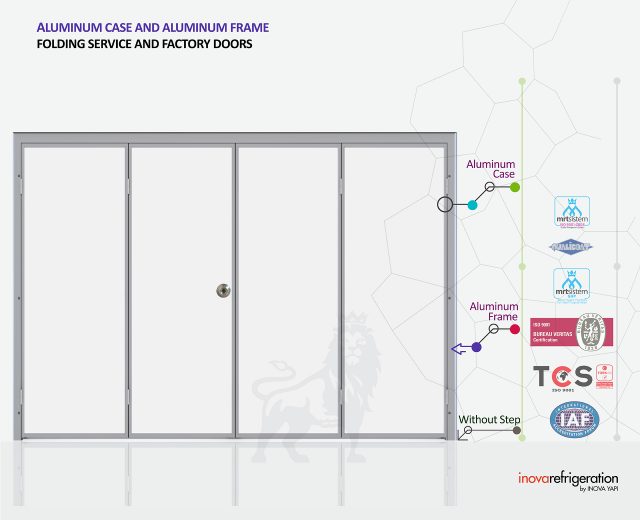

Door wing ( blade ) Case: DIN 50049-2.2./EN 10204-3.1.B Standards.in Anodized aluminum profile

Door handle: The door can be applied in different models according to the areas to be used, but as standard, round stainless arm is applied.

Door hinges: standard in DIN 50049-2.2./ EN 10204-3.1.B  Standards. The  door  can be used in different quantities, at least 2 in each wing according to the area to be used and the size of the door. It works silently. Does not sag, sleep, break. Service Doors open in one direction only to our side.

Door Front Frame: 100% German  design  against  DIN  50049 – 2.2. / EN 10204-3.1.B maximum heat insulation polyamide barrier aluminum Frame.

Door Front Frame: According to the  wall  thickness  of the area to be installed according to DIN 50049-2.2./EN 10204-3.1.B Standards  anodized  aluminum  back  mold  application is made .Since the rear frames do not carry loads, they are only applied for image aesthetics.

Door opening system: The Service doors are only opened and closed manually.

The viewing Window: Surveillance windows are the window system for viewing the inside and outside.Fiber glass is made of hard and transparent material and epdm flexible seals 100% leak-proof (Optional)

Over 30 pieces colors are Available

304 quality chrome stainless sheet blade

Viewing window

Over 2 pieces of hinge

Bumper plate

PIR Polyurethane
