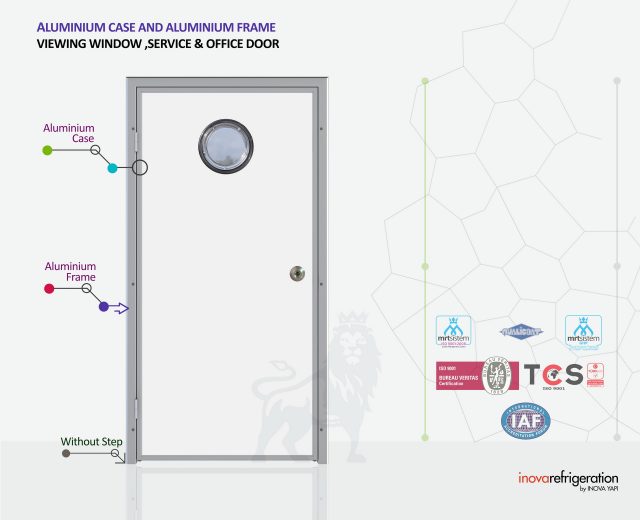

Service & Office Door – Aluminium Case & Aluminium Frame – Viewing Window

Service & Office Door – Aluminium Case & Aluminium Frame – Viewing Window

1 photo


Portfolio Description

Usage Areas:

Hotels, medicine storage rooms, Medical equipment and waste rooms, Air conditioning rooms, Food facilities such as meat, cheese, milk, Production facilities, Warehouses, Warehouses, Factories, Dyehouses, Women’s health and beauty centers, Garbage processing plants, Morgues, Phrygian vehicles, Gsm booths, Telecommunication base station centers, Areas requiring hygiene, Restaurants, Food production facilities, Pastryhouses, Hot rooms, Integrated production facilities, Pc server rooms, Vegetable and fruit processing plants, Pickles, Tomato paste production facilities, Hospitals, Operating theaters, Fish production and Processing plants, Clearance stations, Chemical laboratories.



Doors Special Solutions:

  • Doors are easy & fast to mounted & easy to maintain
  • The area to be used is produced according to your needs
  • Includes special accessories developed according to every need
  • It has a system to be installed according to each wall type
  • It has the feature of keeping the thermal insulation at maximum level
  • we use Package with strength packaging system
  • Service doors are produced embedded inside the moldings
  • Suitable for office and living areas



Environment and User Friendly:

  • Clean design
  • Does not contain bacteria
  • Corrosion resistant
  • High-pressure accessories
  • Manufacturing with environmentally friendly products
  • Maximum energy saving
  • Durable materials
  • High vapor proof sealing system
  • Quiet and smooth operation

Technical Details

  • In general, Flip flap door models are not standard in the world.
  • Minimum           :        50 cm Width * 50 cm High      * 40 mm thickness (wing / blade size)
  • Maximum          :       120 cm Width * 250 cm High   * 40 mm thickness (wing / blade size)

*Maximum door dimensions can be made by considering the international transport standards.

**Measures can be made in the desired size in the areas to be applied on-site.

***Maximum dimensions can be increased for Opentop containers and truck transport

****Maximum dimensions for single wing models

Room temperature range door to use              : NEGATIVE – 50° C / POSITIVE 80° C

Door type                                                                      : One wing Service door

Door Blade ( wing )Thickness                              : 40 mm

Door Blade ( wing ) sheet feature                       : Door sheet  are coatings with scratch protection surface with PVC films 100-200 µ micron / 0,50 mm x 0,70 mm (minimum) hot dipped galvanized coil coating painted steel 10142

Door Blade (wing) sheet quality                         : dx51d + z – EN 10327 – Standards

Door Blade (wing) insulation features            : Polyol + Izocsiyanate = Polyurethane

Insulation density                                                    : 40 – 45 kg / m3   – EN 1602 Standards

Thermal Conductivity Coefficient                     : λ = 0,022 W/mK   – EN 13162

Fire Classification                                                    : PUR – B-s1, d0 EN 13501-1/PIR  B-s1, d0 EN 13501-1 (optionally)

Door Blade (wing) color suggested                    : Standard models Ral 9002 – Different colors optional. PVDF (Polyvinylidene Floride) Painted Galvanized sheet

Door Insulation Gaskets                                         : Double Density Component with Epdm & Pvc Combination  Suitable for use in the thermal temperature range between 65 °C & + 150 °C. As used in food & living areas, it’s in compliance with 21.CFR 177.2600 specifications & quality standards. Can be produced without Step (threshold) or wıth Step (threshold) type

Door wing ( blade ) Case                                         : DIN 50049-2.2./EN 10204-3.1.B Standards. In Anodized aluminum profile

Door handle                                                                 : The door can be applied in different models according to the areas to be used, but as standard, round stainless arm is applied.

Door hinges                                                                  : DIN 50049-2.2./EN 10204-3.1.BAnodized aluminum hinges are used as standard in the service doors. The hinges can be used in different quantities according to the area to be used & at least 2 according to the door size. It works silently  Does not sag, no breaking. Service Doors open in one direction only to our side.

Door Front Frame                                                     : 100% German design against DIN 50049-2.2./EN 10204-3.1.B maximum heat insulation polyamide barrier aluminum Frame

Door Front Frame                                                     : According to the wall thickness of the area to be installed according to DIN 50049-2.2./EN 10204-3.1.B Standards anodized aluminum back mold application is made. Since the rear frames do not carry loads, they are only applied for image aesthetics.

Door opening system                                               : The Service doors are only opened & closed manually.

The viewing Window                                               : Surveillance windows are the window system for viewing the inside & outside. Fiber glass is made of hard & transparent material & Epdm flexible seals 100% leak-proof (Optional).

Door bumper plate                                                   : Aluminum or Pvc Thick  absorber materials applied on the inside or outside of the door on the lower parts of the door in frequently used & impacted areas are called bumper. Bumpers are available asoptional in cold room doors. In addition to aluminum material or PVC plate absorbers, stainless steel 304 quality thick sheet application can be made.

Over 30 pieces. colors are Available

304 quality stainless sheet  blade

Viewing window

Over 2 pieces of hinge

Bumper plate

PIR Polyurethane
