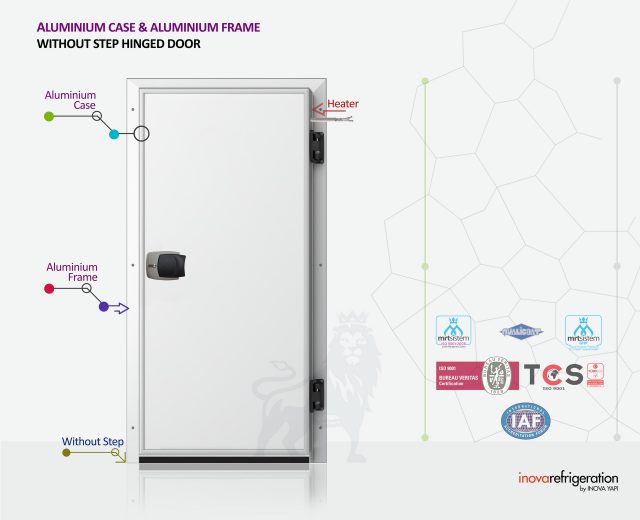

Hinged Door – Aluminium Case & Aluminium Frame – Without Step

Hinged Door – Aluminium Case & Aluminium Frame – Without Step

1 photo


Portfolio Description

Usage Areas:

Cold storage, Cold rooms; Product freezing rooms, Shock production chambers, Hotels, Medicine  Storage rooms, Medical materials & Waste plants, Air conditioning rooms, Food facilities such as meat, Cheese, Milk, Production facilities, Warehouses, Factories, Painthouses, Women’s health & beauty centers, Garbage processing plants, Morgues, Frigolu vehicles, Gsm booths, Telecommunication base station centers, Hygiene areas, Restaurants, Food production facilities, Pastries, Hot rooms, Integrated production facilities, Pc server rooms, Vegetable & fruit processing plants, Pickles, Tomato Paste production facilities, Hospitals, Operating theaters, Fish production & processing plants, Clearing stations, Chemical laboratories.

Doors Special Solutions:

  • Doors are easy & fast to mounted & easy to maintain
  • The area to be used is produced according to your needs
  • Includes special accessories developed according to every need
  • It has a system to be installed according to each wall type
  • It has the feature of keeping the thermal insulation at maximum level
  • We use Package with strength packaging system
  • Recessed type doors

Environment and User Friendly:

  • Clean design
  • Does not contain bacteria
  • Corrosion resistant
  • High-pressure accessories
  • Manufacturing with environmentally friendly products
  • Maximum energy saving
  • Durable materials
  • High vapor proof sealing system
  • Quiet and smooth operation

Technical Details

  • 75 cm width * 180 cm High * 80 mm thickness ( wing or blade size)
  • 90 cm width * 190 cm High * 80 mm thickness ( wing or blade size)
  • 100 cm width * 200 cm High * 80 mm thickness ( wing or blade size)
  • 110 cm width * 190 cm High * 80 mm thickness ( wing or  blade size)
  • Minimum         : 40 cm Width * 40 cm High * 80 mm thickness (wing / blade size)
  • Maximum         :   2   m Width *   3   m High * 80 mm thickness (wing / blade size)

Maximum door dimensions can be made by considering the international transport standards Measures can be made in the desired size in the areas to be applied on-site. The prices vary for models other than standard size.

Room temperature range door to use: NEGATIVE – 50°C / POSITIVE 80°C

Door type: Hinged door

Door Blade ( wing )Thickness: 80 mm

Door Blade ( wing ) sheet feature: Door sheet  are coatings with scratch

protection surface with pvc films 100-200 µ micron / 0,50 mm x 0,70 mm (minimum) hot dipped galvanized coil coating painted steel 10142

Door Blade (wing) sheet quality: dx51d + z – EN 10327 – Standards

Door Blade (wing) insulation features: Polyol + Izocsiyanate = Polyurethane

Insulation density: 40 – 45 kg / m3   – EN 1602 Standards

Thermal Conductivity Coefficient: λ = 0,022 W/mK   – EN 13162

Fire Classification: PUR – B-s1, d0 EN 13501-1 / PIR  B-s1, d0 EN 13501-1 ( optionally )

Door Blade (wing) color suggested: Standard models Ral 9002 – Different colors optional

PVDF (Polyvinylidene Floride) Painted Galvanized sheet

Door Insulation Gaskets: Double Density Component with Epdm & Pvc Combination. Suitable for use in the thermal temperature range between 65 ° C & + 150 ° C.

As used in food & living areas, it’s in compliance with 21.CFR 177.2600 specifications & quality standards. Corner gaskets used by us for the first time in the world do not require welded gaskets . Withstep ( threshold ) & without step ( non threshold ) are Provides 100% sealing on all models

Door wing ( blade ) Case: DIN 50049-2.2./EN 10204-3.1.B Standards.in Anodized aluminum profile

Door Lock: 100% leak-proof & frost-free door lock that can be locked from the outside . PA 6.6 ( Poliamid 6.6 )  % 30  GF we manufacturing in standards . Dark rooms In order to detect the door lock & facilitate the output, it is marked with phosphorus (bright).

Door hinges: The door hinges have a system that opens up when the door is opened & a downward system while closing. This system ensures maximum insulation of the door. The hinges can be used in different quantities according to the area to be used & at least 2 according to the door size. It works silently. No sagging,  No breaking.

Door Front Frame: 100% German design against DIN 50049-2.2./EN 10204-3.1.B maximum heat insulation polyamide barrier aluminum Frame

Door Rear frame: 2 types of rear moldings can be applied according to the wall thickness of the door to be mounted. It has 2 models in aluminum & PVC . Since the rear frames do not carry loads, they are applied only for image aesthetics.

Door opening system: The hinged doors are only opened & closed manually.They can be switched off semi-automatically & automatically with external accessories. but door should be opening manual.

Resistance (heating cable): 220 Volt It can be connected directly . It can work within the range of – 70 ° C to + 200 ° C Maximum degree.

The viewing Window: Surveillance windows are the window system for viewing the inside & outside. Fiber glass is made of hard & transparent material & Epdm flexible seals 100% leak-proof . (Optional).

Door bumper plate: Aluminum or Pvc Thick  absorber materials applied on the inside or outside of the door on the lower parts of the door in frequently used & impacted areas are called bumper . bumpers are available as optional in cold room doors. In addition to aluminum material or PVC plate absorbers , stainless steel 304 quality thick sheet application can be made.

Over 30 pieces. colors are Available

304 quality chrome stainless sheet  blade

Viewing window

Over 2 pieces of hinge

Bumper plate

PIR Polyurethane

Automatic door closers
