Usage Areas:
Hotels, medicine storage rooms, Medical equipment and waste rooms, Air conditioning rooms, Food facilities such as meat, cheese, milk, Production facilities, Warehouses, Warehouses, Factories, Dyehouses, Women’s health and beauty centers, Garbage processing plants, Morgues, Phrygian vehicles, Gsm booths, Pickles, Telecommunication base station centers, Areas requiring hygiene, Restaurants, Food production facilities, Pastryhouses, Hot rooms, Integrated production facilities, Pc server rooms, Vegetable and fruit processing plants, Tomato paste production facilities, Hospitals, Operating theaters, Fish production and Processing plants, Clearance stations, Chemical laboratories.
Doors Special Solutions:
- Doors are easy and fast to mounted , and easy to maintain
- The area to be used is produced according to your needs
- Includes special accessories developed according to every need
- It has a system to be installed according to each wall type
- It has the feature of keeping the thermal insulation at maximum level
- we use Package with strength packaging system
- Service doors are produced embedded inside the moldings
- Suitable for factory areas
Environment and User Friendly:
- Clean design
- Does not contain bacteria
- Corrosion resistant
- High-pressure accessories
- Manufacturing with environmentally friendly products
- Maximum energy saving
- Durable materials
- High vapor proof sealing system
- Quiet and smooth operation
Technical Details
- In general, Service door models are not standard in the world.
- Minimum: 200 cm Width * 100 cm High * 40 mm thickness (wing / blade size)
- Maximum: 800 cm Width * 650 cm High * 40 mm thickness (wing / blade size)
*Maximum door dimensions can be made by considering the international transport standards
**Measures can be made in the desired size in the areas to be applied on-site.
***Maximum dimensions can be increased for Opentop containers and truck
Room temperature range door to use: NEGATIVE – 50°C / POSITIVE 80°C

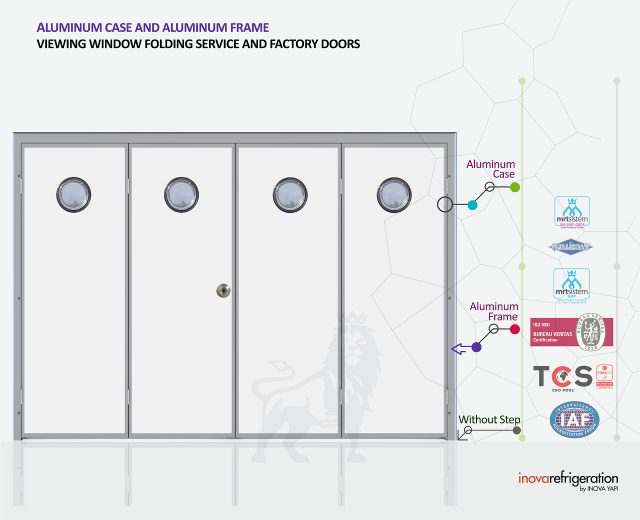

Door type: Folding Service door
Door Blade ( wing )Thickness: 40 mm
Door Blade ( wing ) sheet feature: Door sheet are coatings with scratch protection surface with pvc films 100-200 µ micron / 0,50 mm x 0,70 mm (minimum) hot dipped galvanized coil coating painted steel 10142
Door Blade (wing) sheet quality: dx51d + z – EN 10327 – Standards
Door Blade (wing) insulation features: Polyol + Izocsiyanate = Polyurethane
Insulation density: 40 – 45 kg / m3 – EN 1602 Standards
Thermal Conductivity Coefficient: λ = 0,022 W/mK – EN 13162
Fire Classification: PUR – B-s1, d0 EN 13501-1 / PIR B-s1, d0 EN 13501-1 (optionally)
Door Blade (wing) color suggested: Standard models Ral 9002 – Different colors optional PVDF (Polyvinylidene Floride) Painted Galvanized sheet
Door Insulation Gaskets: Double Density Component with Epdm and Pvc Combination. Suitable for use in the thermal temperature range between 65°C and + 150°C. As used in food and living areas, it is in compliance with 21.CFR 177.2600 specifications and quality standards. Can be produced without Step ( threshold ) or wıth Step ( threshold ) type.
Door wing ( blade ) Case: DIN 50049-2.2./EN 10204-3.1.B Standards.in Anodized aluminum profile
Door handle: The door can be applied in different models according to the areas to be used, but as standard, round stainless arm is applied.
Door hinges: standard in DIN 50049-2.2./ EN 10204-3.1.B Standards. The door can be used in different quantities, at least 2 in each wing according to the area to be used and the size of the door. It works silently. Does not sag, sleep, break. Service Doors open in one direction only to our side.
Door Front Frame: 100% German design against DIN 50049 – 2.2. / EN 10204-3.1.B maximum heat insulation polyamide barrier aluminum Frame.
Door Front Frame: According to the wall thickness of the area to be installed according to DIN 50049-2.2./EN 10204-3.1.B Standards anodized aluminum back mold application is made .Since the rear frames do not carry loads, they are only applied for image aesthetics.
Door opening system: The Service doors are only opened and closed manually.
The viewing Window: Surveillance windows are the window system for viewing the inside and outside.Fiber glass is made of hard and transparent material and epdm flexible seals 100% leak-proof (Optional)
Over 30 pieces colors are Available
304 quality chrome stainless sheet blade
Viewing window
Over 2 pieces of hinge
Bumper plate
PIR Polyurethane
